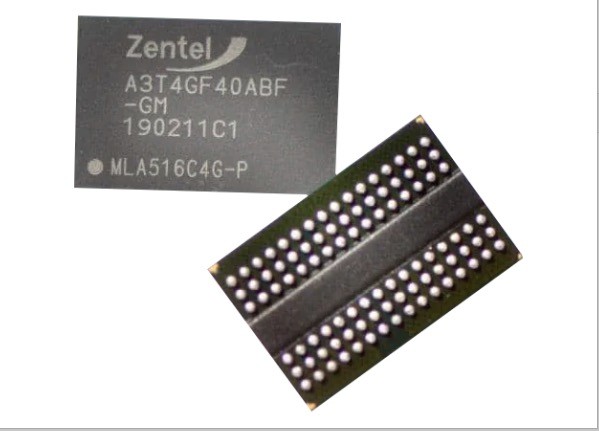

Zentel 4Gb DDR4 SDRAM with a Pseudo Open Drain (POD) interface for data input/output operates within 0°C to 95°C case temperature range (commercial grade). This SDRAM supports Command/Address Latency (CAL), asynchronous reset, gear down mode (1/2 and 1/4 rate), programmable preamble, self-refresh abort, and Temperature Controlled Refresh (TCR) mode. The 4Gb DDR4 SDRAM features a 3200Mbps data rate, a bi-directional differential data strobe, and a Data Mask (DM) for write data. This SDRAM complies with JEDEC JESD-79-4 standards and is available in a 96-ball FBGA package.
3200Mbps data rate(DDR4-3200)
Bi-directional differential data strobe (DQS_t and DQS_c)
Pseudo Open Drain (POD) interface for data input/output
Supports Low Power Auto Self Refresh (LPASR) mode
Command/Address Latency (CAL)
Supports Temperature Controlled Refresh (TCR) mode
High-speed data transfer by the 8-bit pre-fetch
Supports hPPR and sPPR
Supports asynchronous reset
Data Mask (DM) for write data
Nominal, park, and dynamic On-Die Termination (ODT)
8 internal banks
Power supply:
VDD=VDDQ=1.2V±5%
VPP=2.5V-5%+10%
0°C to 95°C operating case temperature range
Differential clock inputs operation (CK_t and CK_c)
Refresh cycles:
7.8μs at 0°C≤TC≤85°C
3.9μs at 85°C≤TC≤95°C
Average refresh period:
Multipurpose register READ and WRITE capability
Supports write leveling and programmable preamble
Complies with JEDEC JESD-79-4 standards
Available in a 96-ball FBGA package
